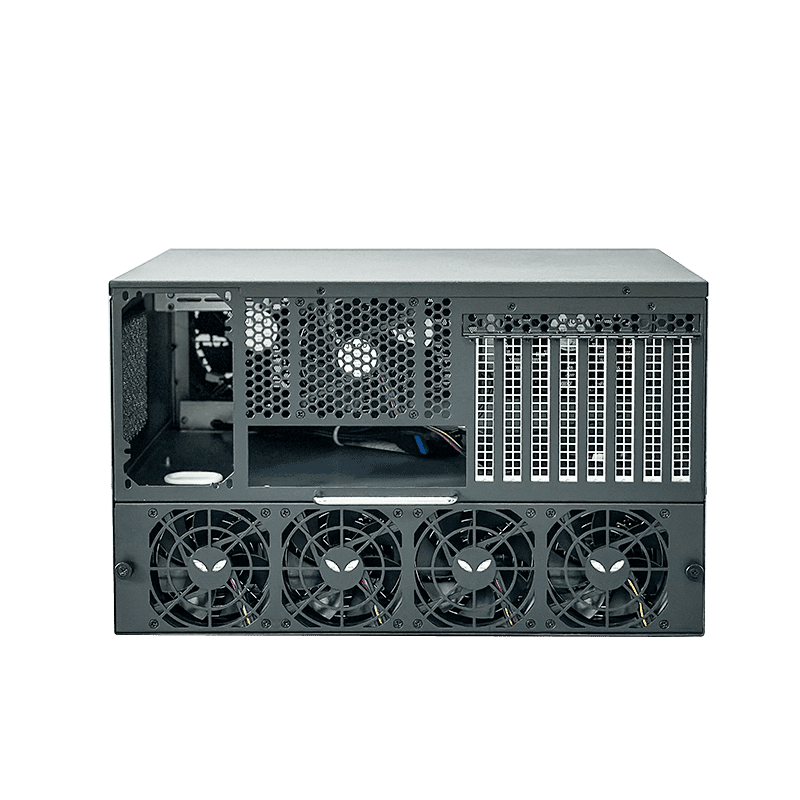

YJ-NAS12A
The YJ-NAS12A adopts a modular design, which can quickly meet customer demands. The fan, power supply and hard disk adopt a modular design, which enhances the system’s reliability and heat dissipation performance and makes maintenance more convenient.
Supports vertical insertion of 8 full-height PCI/PCIE expansion slots. Optional standard size motherboards of 12 ” *9.6 ” and below are available.
It offers two hard disk bay options: 3.5 “HDD*12 (Compatible with 2.5″HDD/SSD), meeting the lightweight requirements for surveillance video recording and other applications.
Model
YJ-NAS12A
Weight
14KG
Material
SGCC
Heat dissipation
Air-cooled
Compatible motherboard
ATX/mini-ITX
Power supply location
bottom
Volume
L306*W432*H262MM
Service
accommodation, exchange and return
Power supply position
Support standard ATX power supply
Craft
It is rendered black through sandblasting and oxidation treatment, while the box body and accessories are made of high-quality steel plates.
