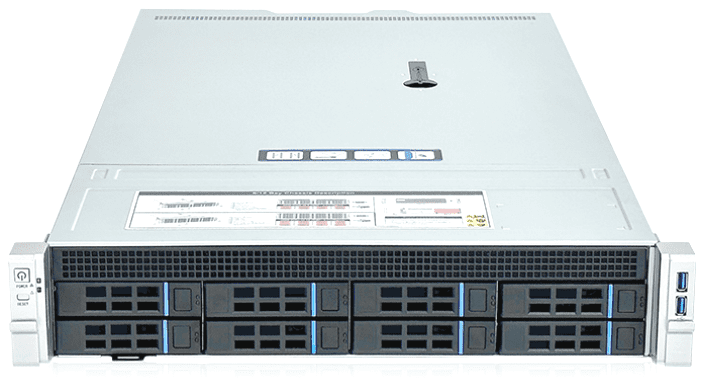

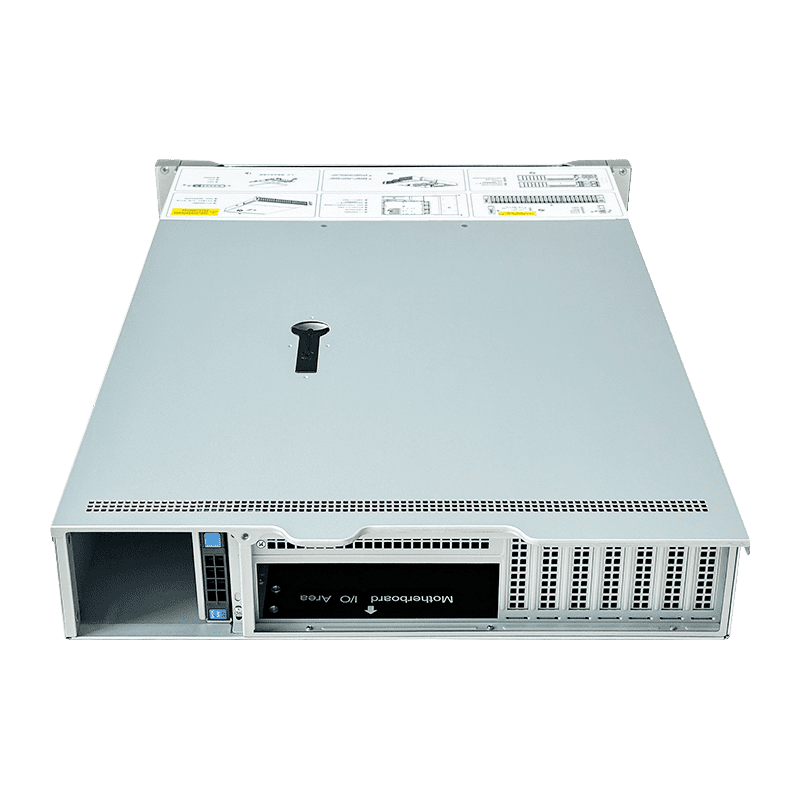

X-265C0807r
The X-265C0807r adopts a modular design, which can quickly meet customer demands. The fan, power supply and hard disk adopt a modular design, which enhances the system’s reliability and heat dissipation performance and makes maintenance more convenient.
Supports vertical insertion of7 full-height PCI/PCIE expansion slots. Optional standard size motherboards of 12 ” *13 ” and below are available, which are flexible and convenient.
It offers two hard disk bay options: 8*3.5″/2.5″hot-swap SATA/SAS drive bays,optional rear 2*2.5″ hot-swap hard drives bays， meeting the lightweight requirements for surveillance video recording and other applications.
Model
X-265C0807r
Weight
14KG
Material
SGCC
Heat dissipation
Air-cooled
Compatible motherboard
EATX(12″13″)/CEB(12″10.5″)/ATX(12″9.6″)/Micro ATX(9.6″9.6″)/Mini-ITX(6.7″*6.7″)
Surface Treatment
The mounting ears feature a bright silver finish with sandblasting and oxidation treatment, while the cabinet and its accessories retain the natural finish of electrolytic steel sheets
Volume
D650*W436*H90mm
Service
accommodation, exchange and return
Power supply position
2U power supply/CRPS redundant power supply
HDD Backplane
12Gb/s SAS data backplane, supporting SGPIO
