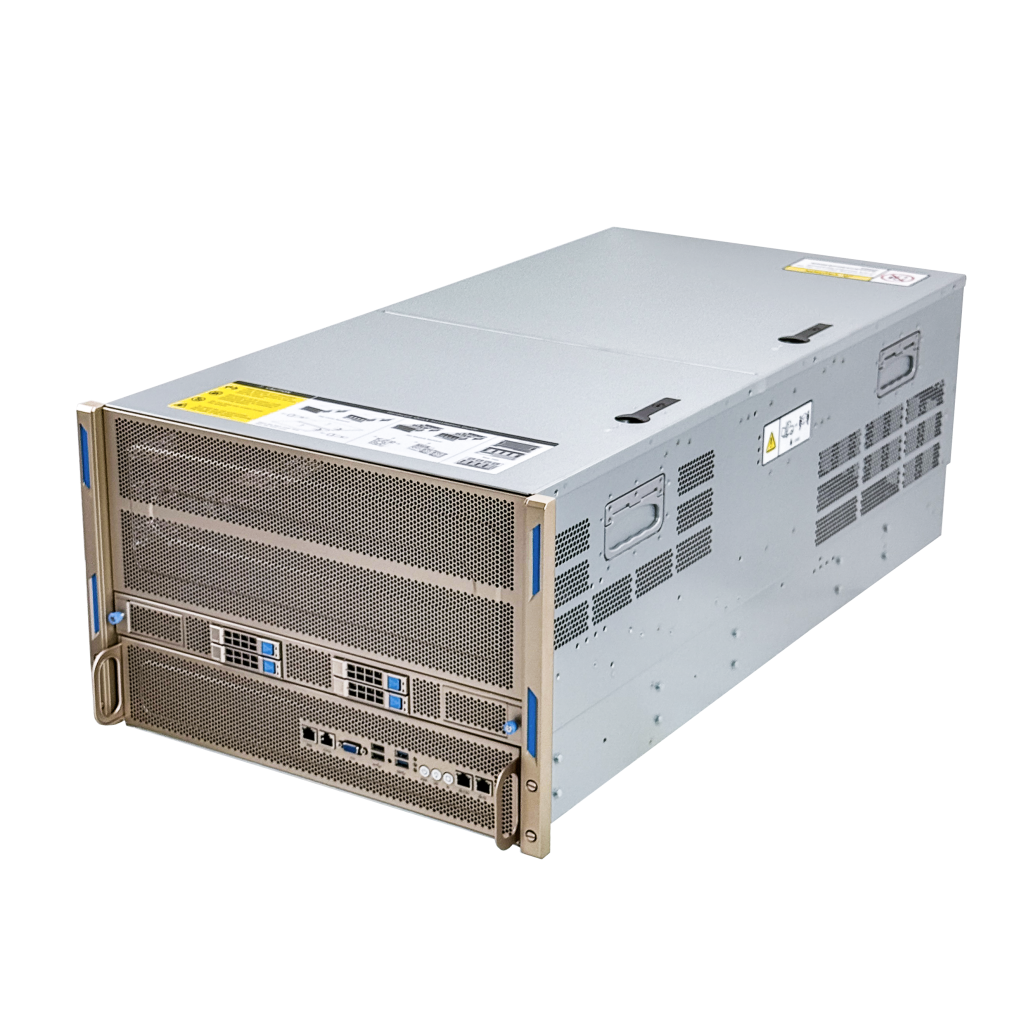

The SR02-7U900 adopts a modular design, which can quickly meet customer demands. The fan, power supply and hard disk adopt a modular design, which enhances the system’s reliability and heat dissipation performance and makes maintenance more convenient.
Supports vertical insertion of 8 full-height PCI/PCIE expansion slots. Optional standard size motherboards of 15 ” *13 ” and below are available, which are flexible and convenient, and customization is supported.
It offers two hard disk bay options: 2.5 “HDD/SSD*4 , meeting the lightweight requirements for surveillance video recording and other applications.
Model
SR02-7U900
Weight
40KG
Material
SGCC
Heat dissipation
Air-cooled
Compatible motherboard
HPTX/EATX/CEB/ATX/mini-ITX
Power supply location
bottom
Volume
L900*W447*H308MM
Service
accommodation, exchange and return
Power supply position
Supports 5 CRPS module, supports N+ N redundancy/N+ 1 redundancy
Craft
The hanging ears are sandblasted and oxidized in a bright silver color, while the box body and accessories are made of plain galvanized steel plates in their original color
