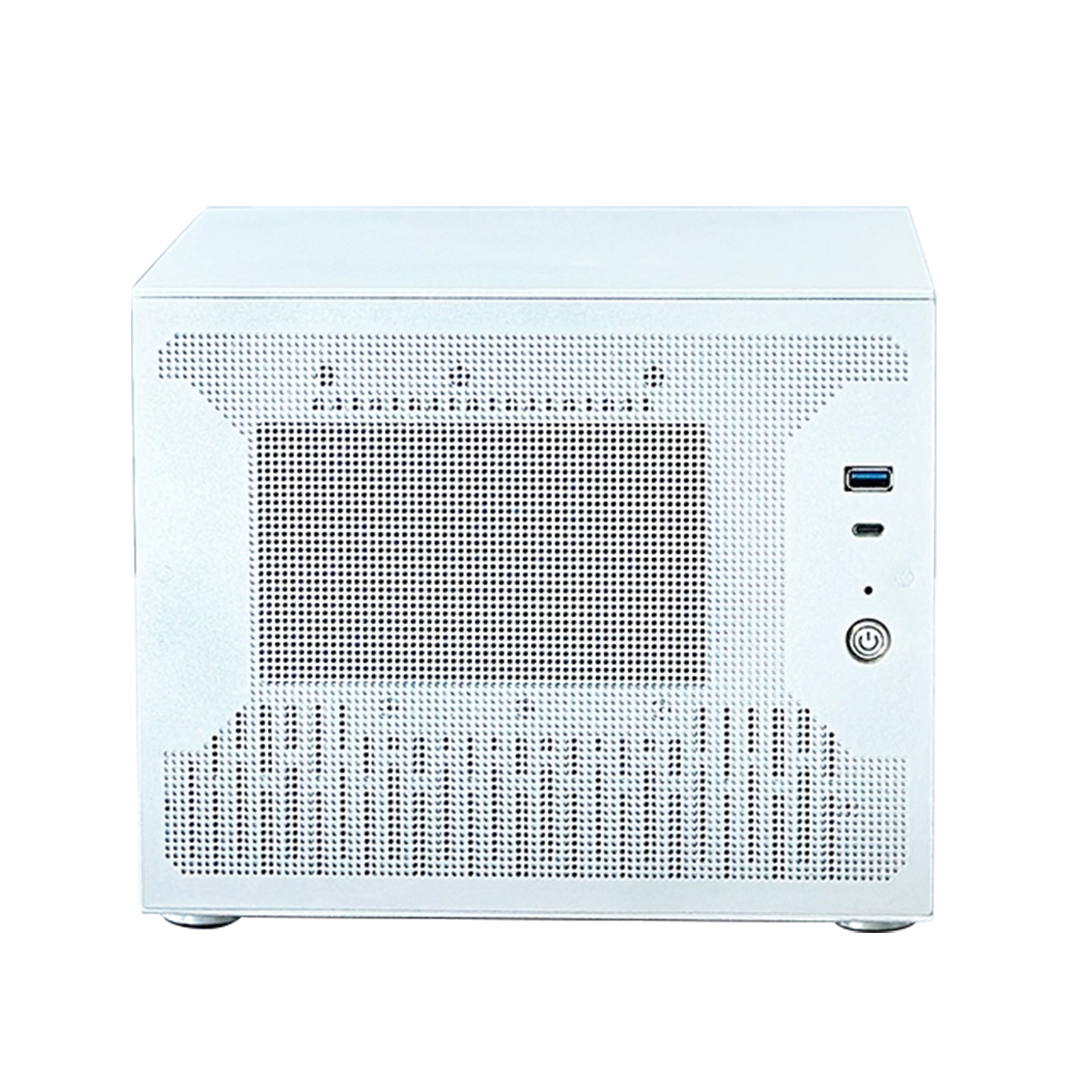

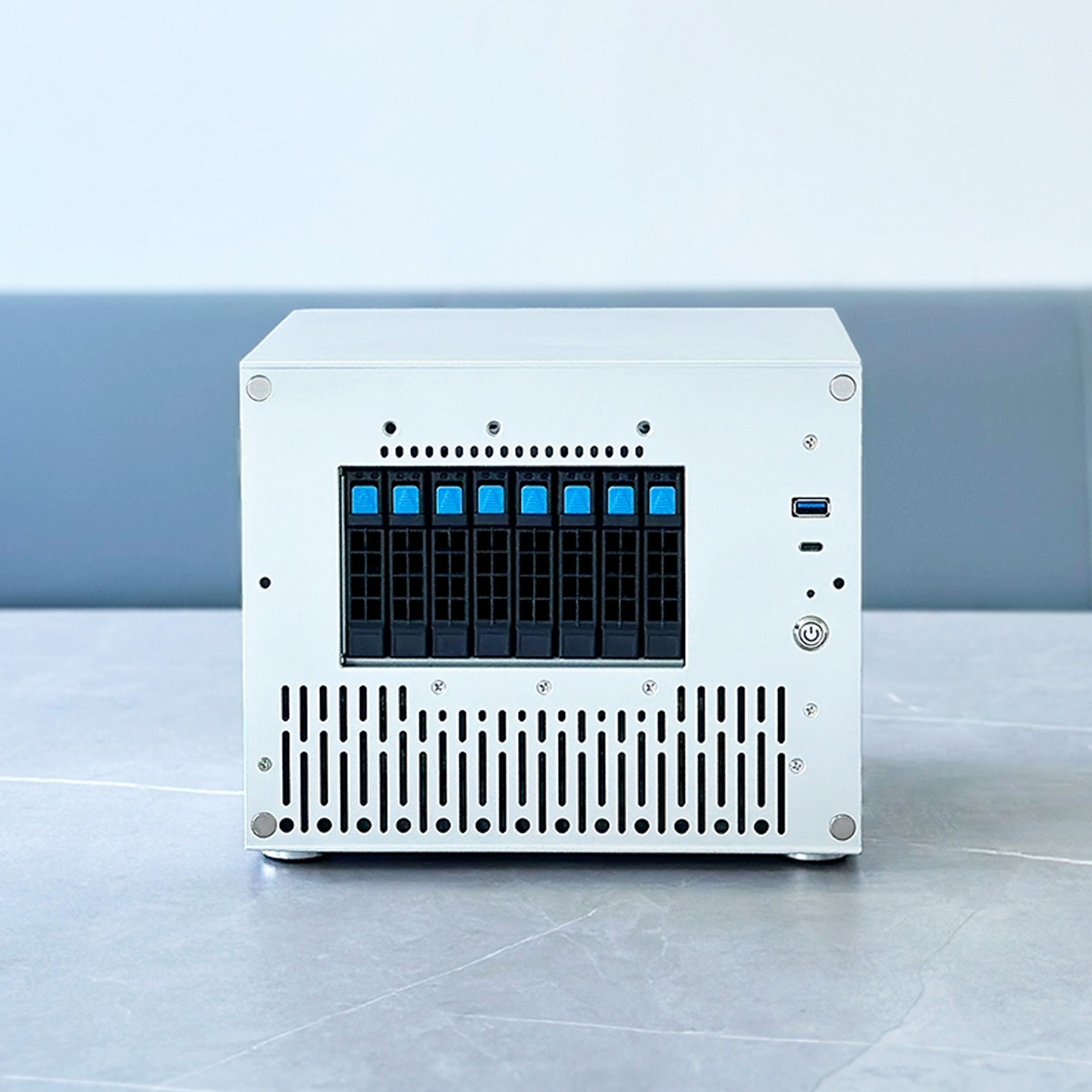

Home NAS Server Chassis-NAS8A
$143.00
8-Bay 2.5″ SSD ITX Motherboard SFX Power Supply NAS Chassis
100 in stock (can be backordered)
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 37.5 × 32.5 × 34.5 cm |
| Weight | 5kg |
| Dimension D*W*H | L248*W199*H200MM |
| Surface Treatment | Chassis and side panels — sandblasted & anodized silver; front bezel and fan bracket — silver paint. |
| Supports motherboard | Mini-ITX(6.7"*6.7") |
| material | The chassis is made of 3mm aluminum plate, the two side panels are made of 2mm aluminum plate, the interior is made of 1.0mm thick galvanized steel, and the front bezel is made of 0.6mm stainless iron. |
| front ports | 1 USB 3.0, 1 Type-C |
| Cooling Fan | 12025*1 |
| Package Dimensions | L345*W295*H315MM |
| Maximum height for cooler | 40MM |
| HDD Backplane | Standard 8643 interface backplane |
| HDD Bay | 8 x 2.5" SSD, with 1 x 3.5" HDD, U.2 hard drives not supported |
| Suitable PSU | Standard SFX power supply, length not exceeding 130mm |
| PCl Slot | 1 full-height PCI/PCIe card, max thickness 22mm, max length 165mm. |
