High Quality Rackmount Server Chassis-265B2407r
$375.00

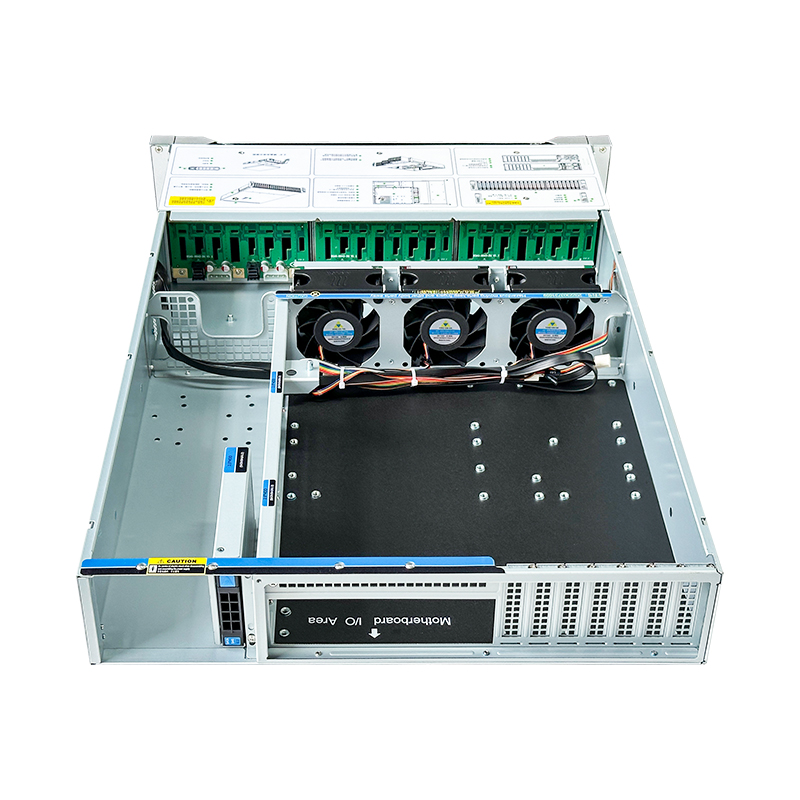

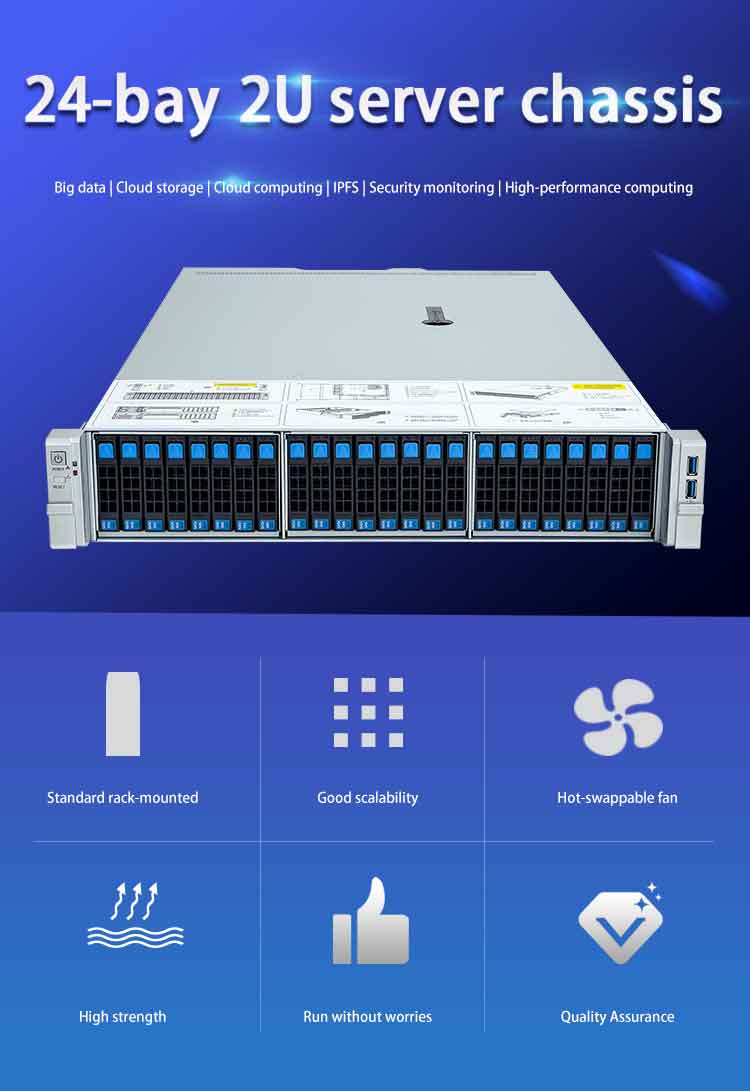

24 Bay Rackmount Server Chassis
100 in stock (can be backordered)
Description

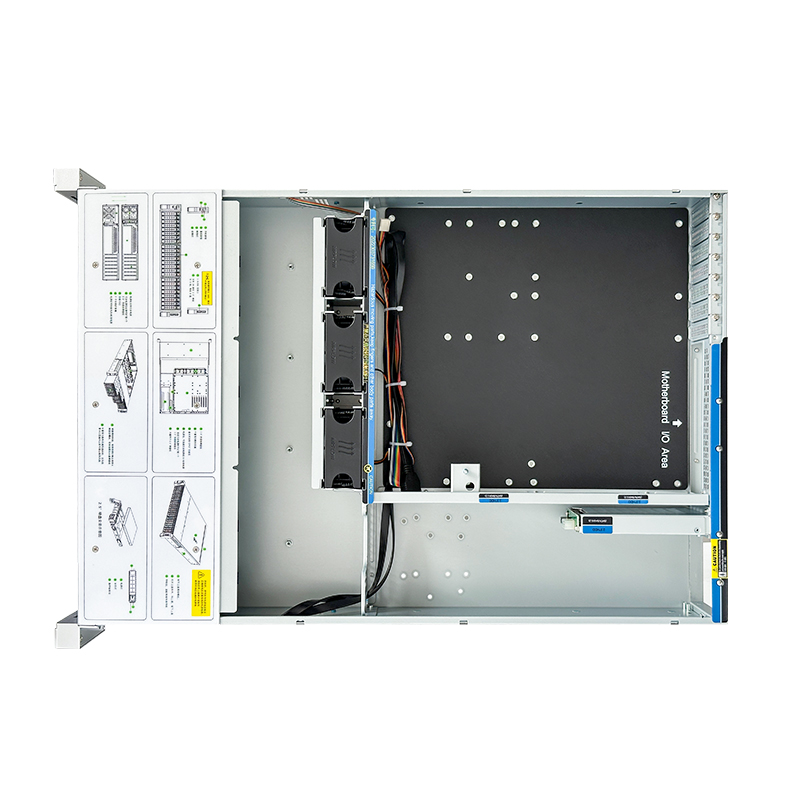

This 24-bay 2U rack-mounted server chassis supports 2 hot-swap 2.5-inch SATA drives with a 12Gb/s backplane and SGPIO. It features intelligent temperature control with 3 hot-swap fans, USB 3.0 ports, and compatibility with multiple motherboard sizes including EATX, CEB, ATX, and Micro ATX. The robust build uses quality 1.0mm SGCC material and aluminum alloy, ensuring reliable performance for storage and video hosting needs.

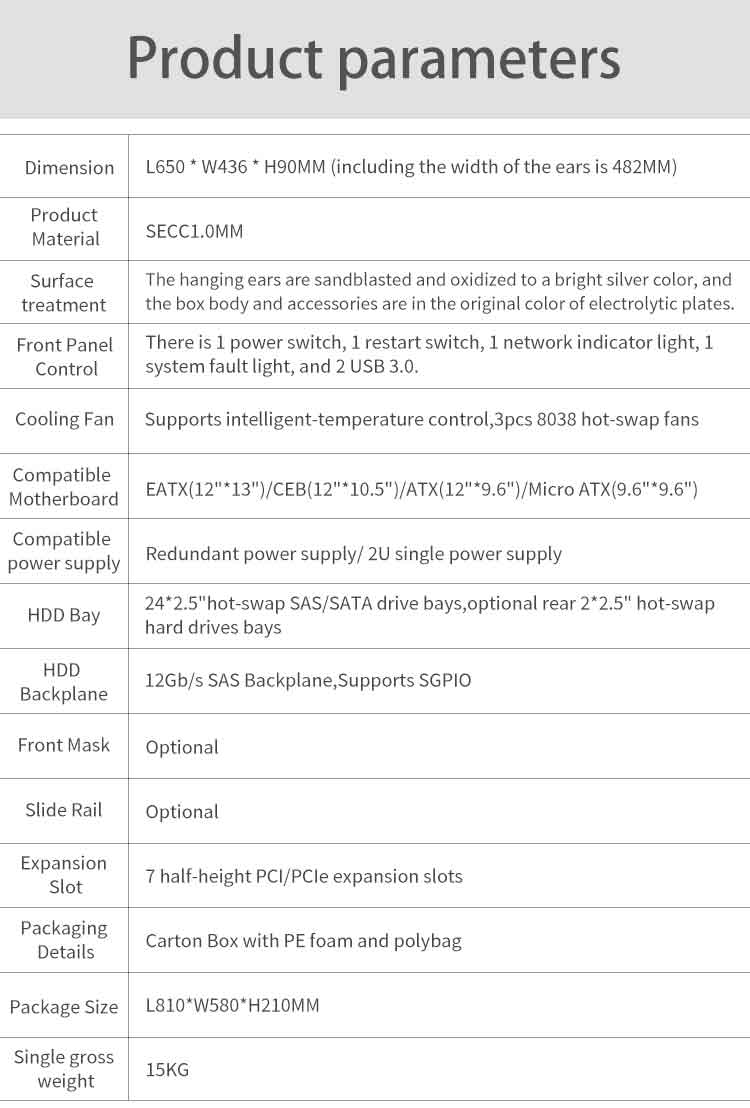

Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 79 × 56 × 18.5 cm |
| material | Quality Fine 1.0mm SGCC,Aluminum Alloy, Plastic |

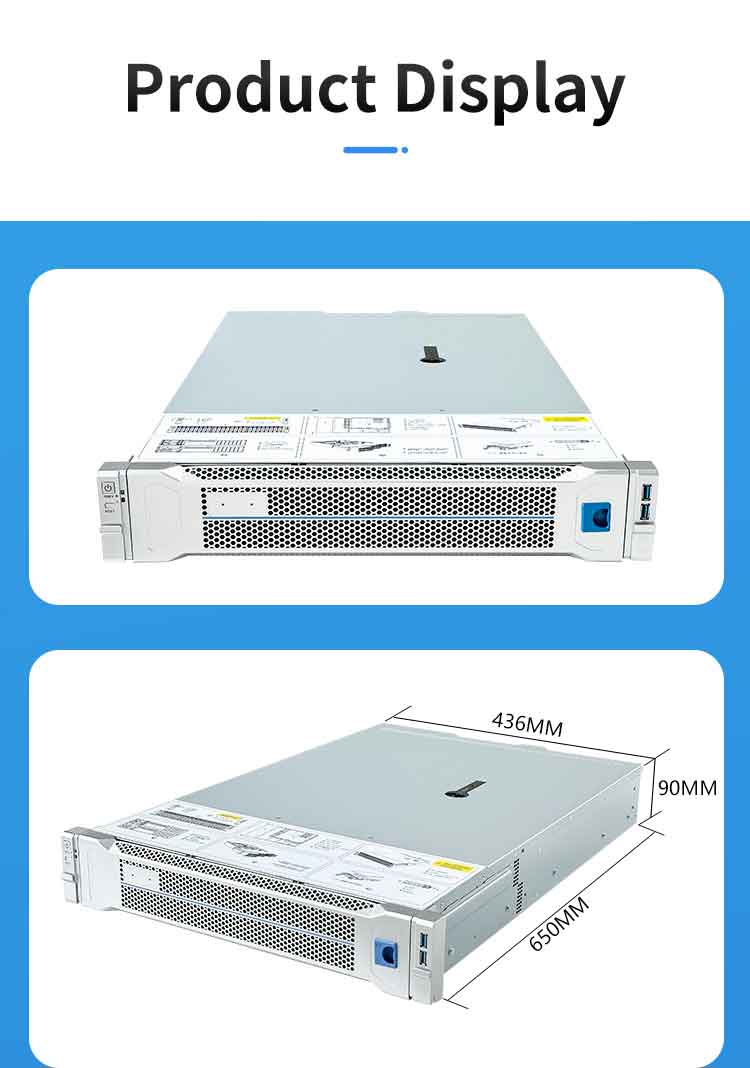

| Dimension D*W*H | L650mm*W436mm*H90mm |

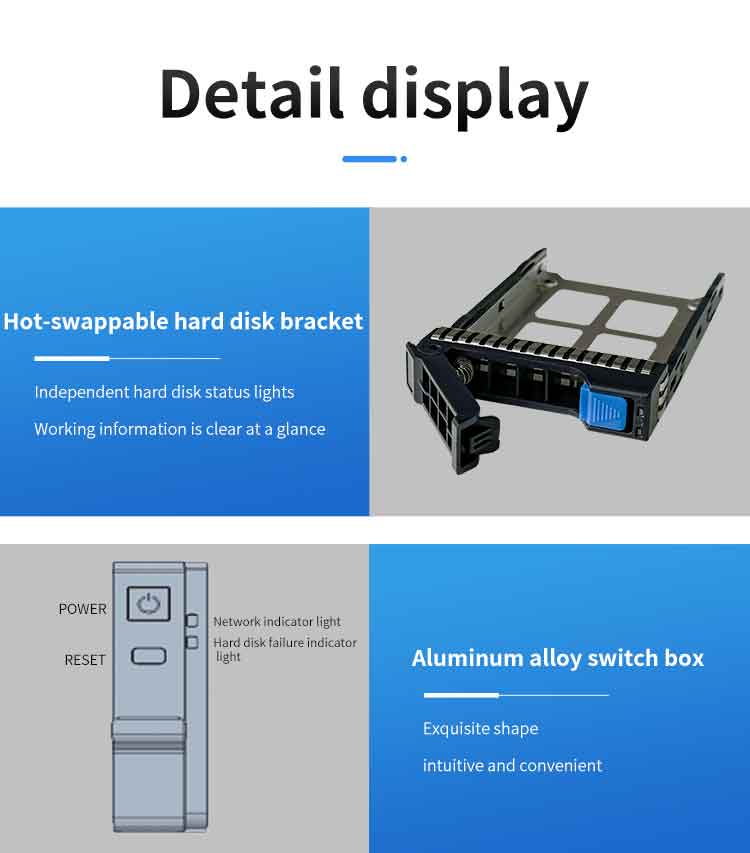

| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators |

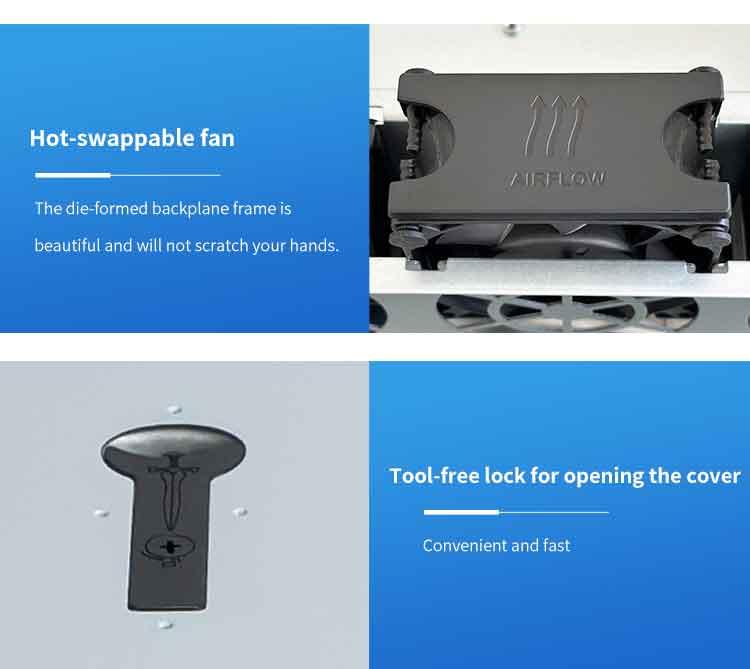

| Cooling Fan | Supports intelligent-temperature control,3pcs 8038 hot-swap fans |

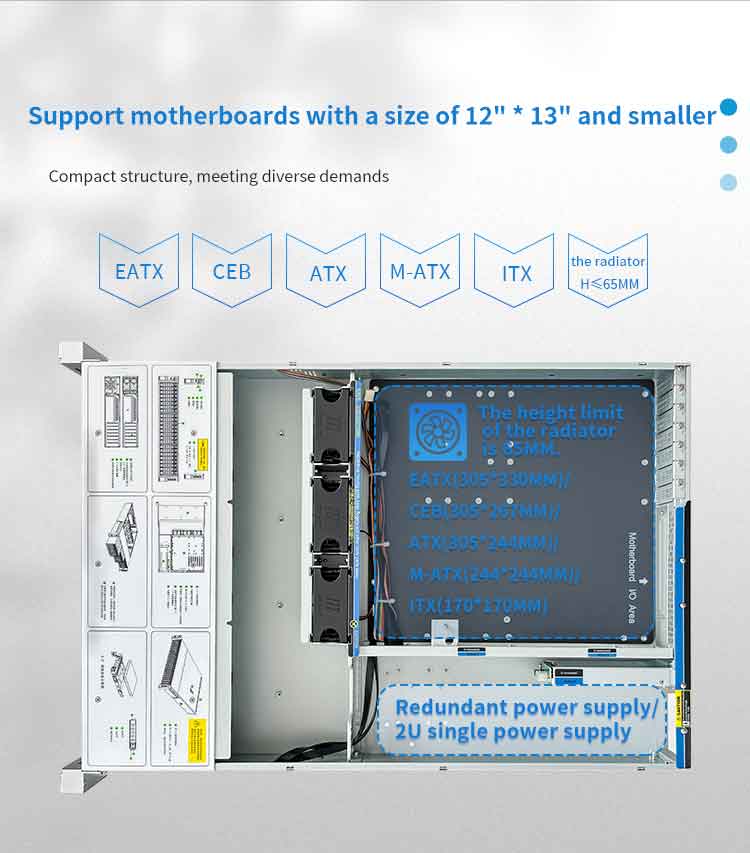

| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6")/Mini-ITX(6.7"*6.7") |
| Maximum height for cooler | 65mm |

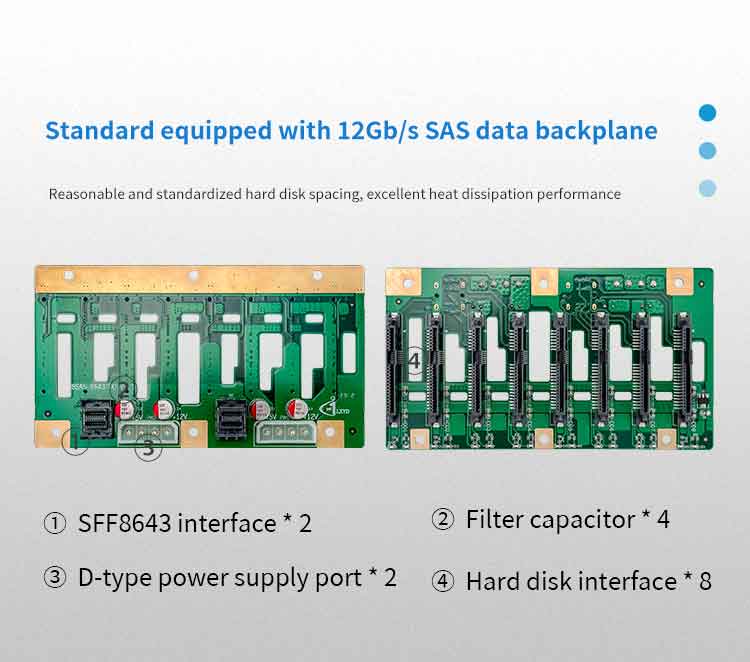

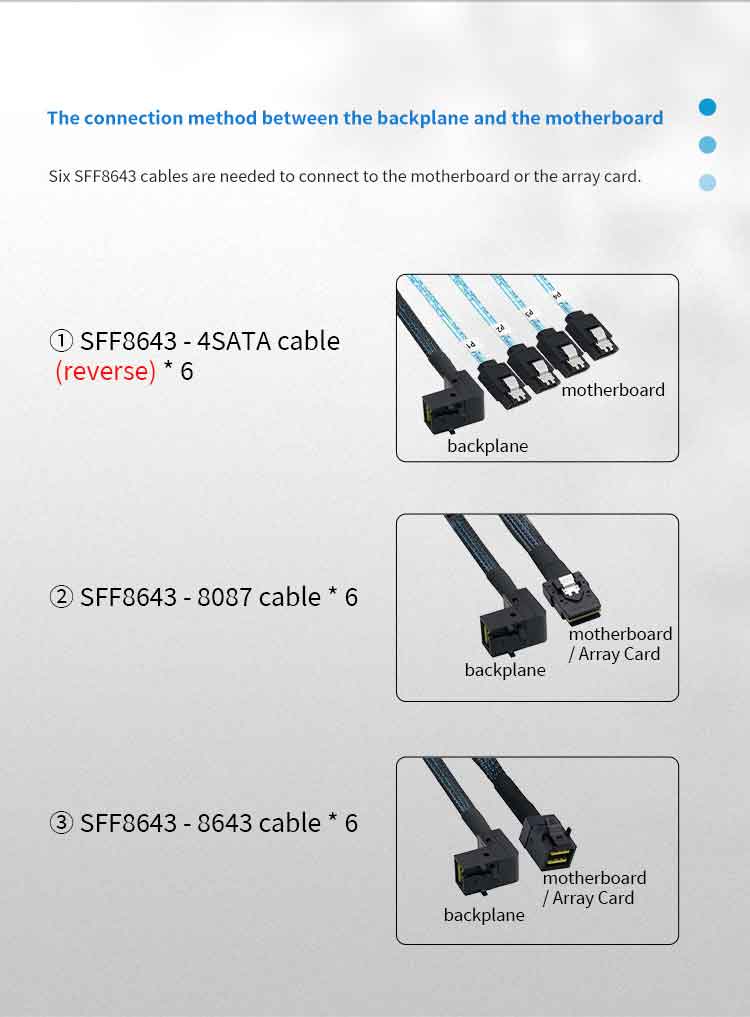

| HDD Backplane | 12Gb/s SAS Backplane,Supports SGPIO |
| HDD Bay | 24*2.5"hot-swappable SAS/SATA drive bays, 2*2.5" hot-swappable drives bays |
| Suitable PSU | redundant power supply / 2U single power supply |

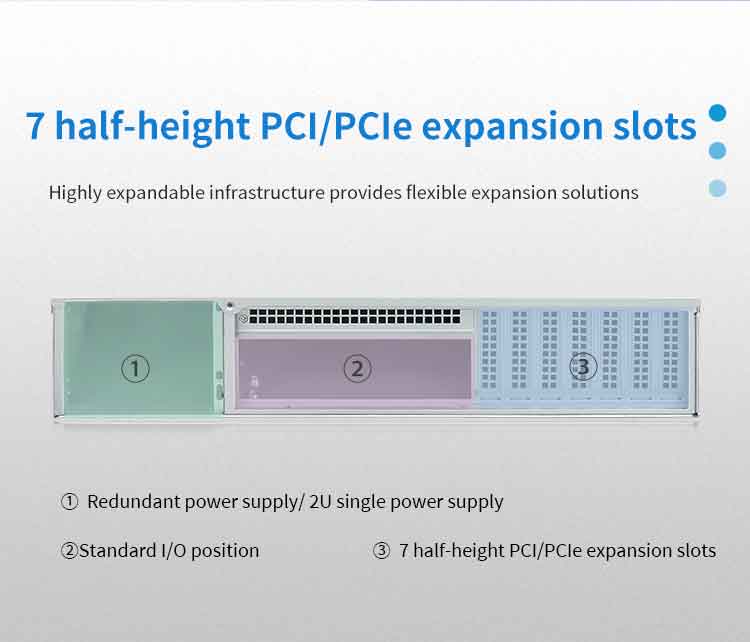

| Epansion Space | 7 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Single package size | L790mm*W560mm*H185mm |
| Single gross weight | 15kg |
