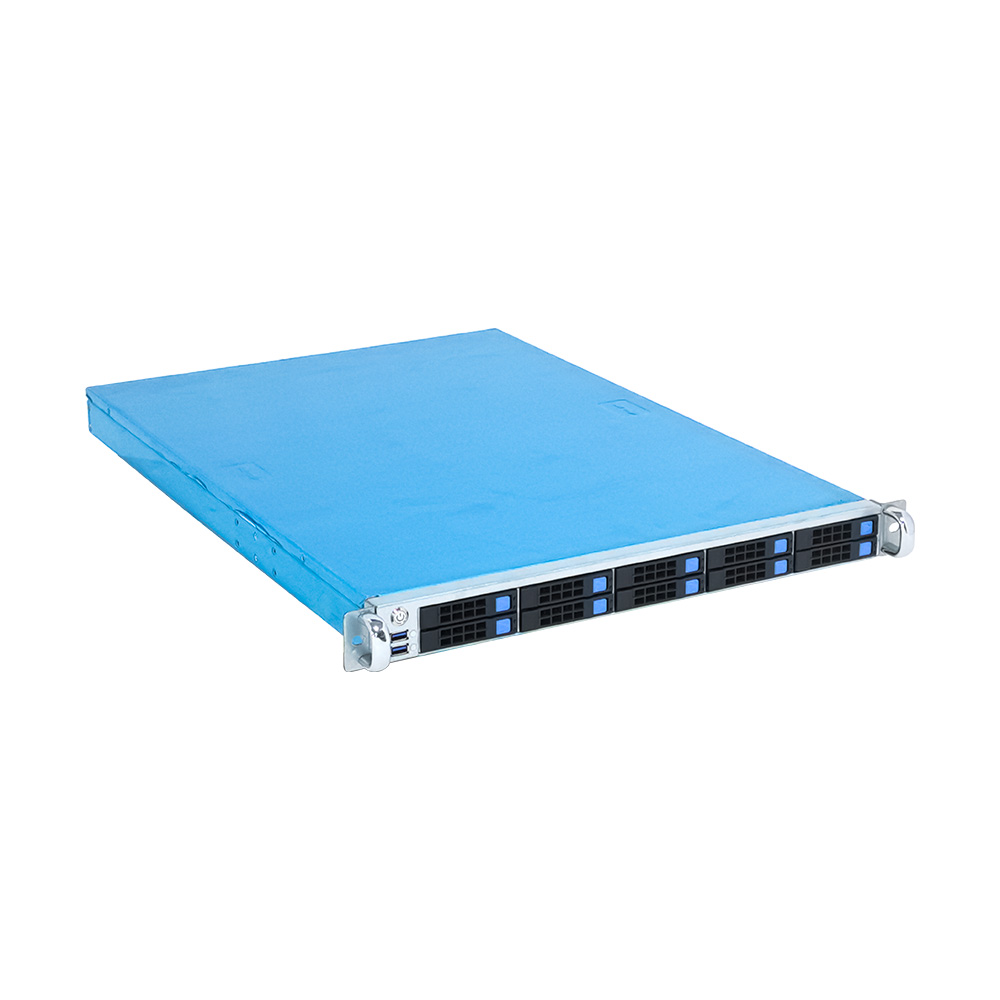

19″ server chassis with 10 Hard Disk Bays Steel & Aluminum Alloy USB Front Ports with Fan
100 in stock (can be backordered)

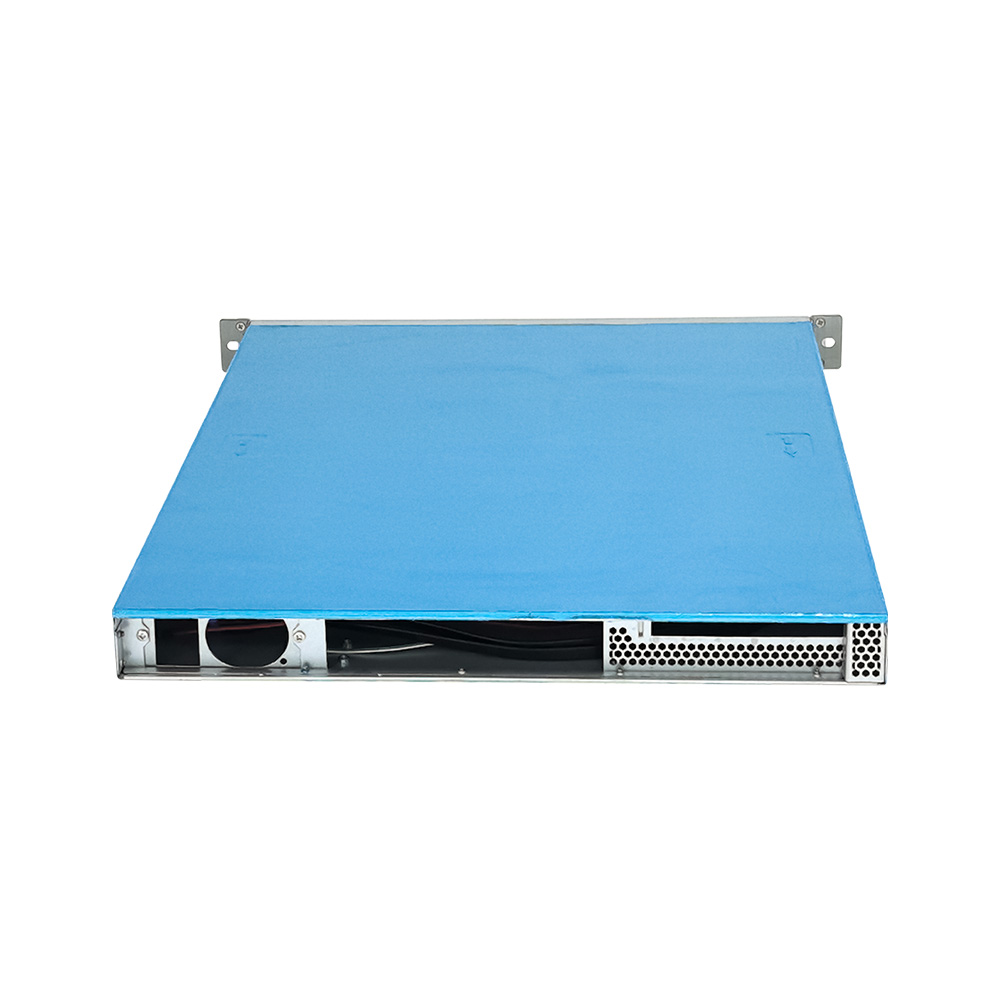

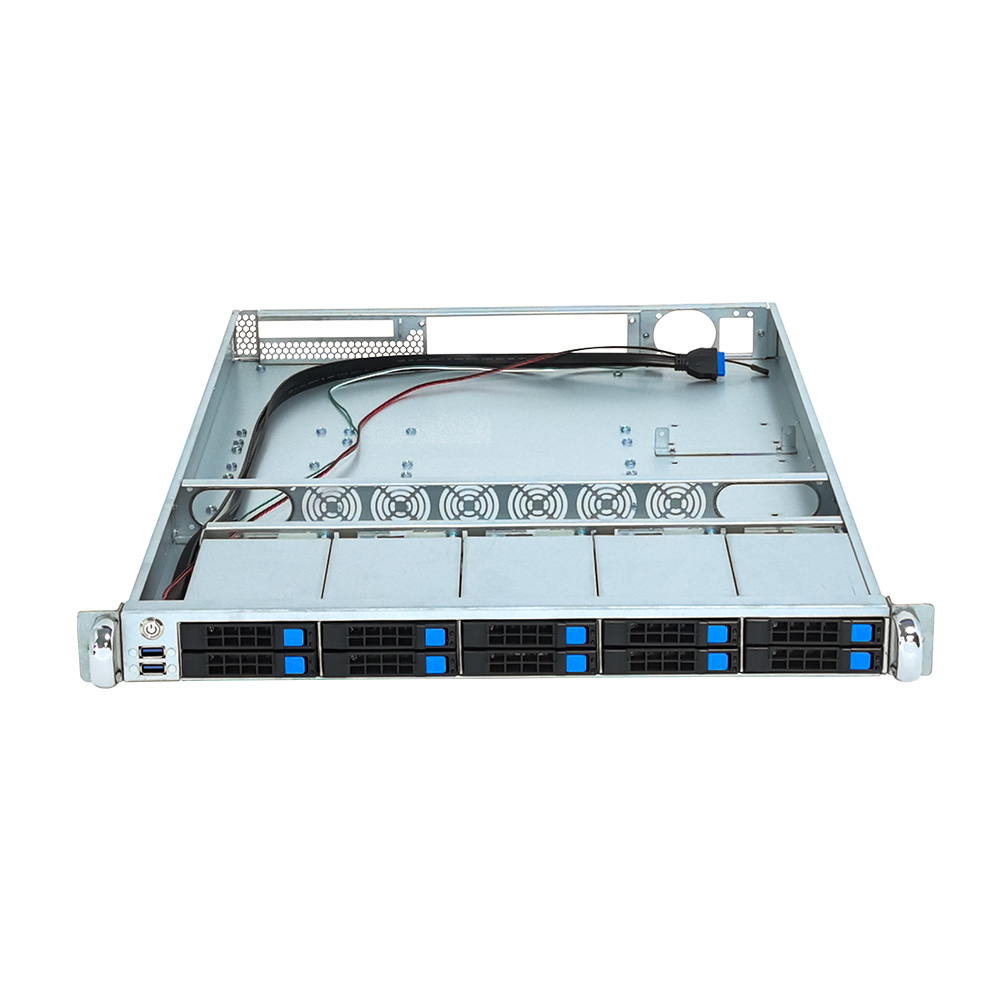

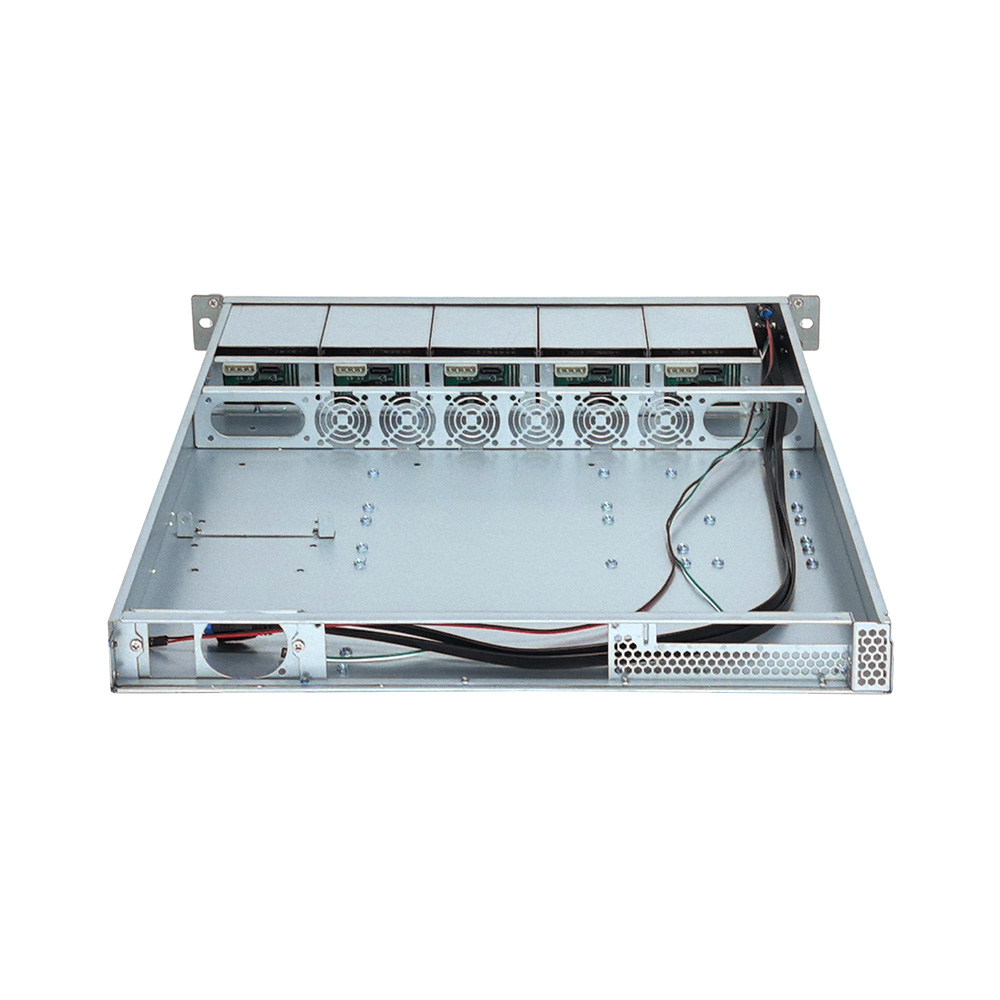

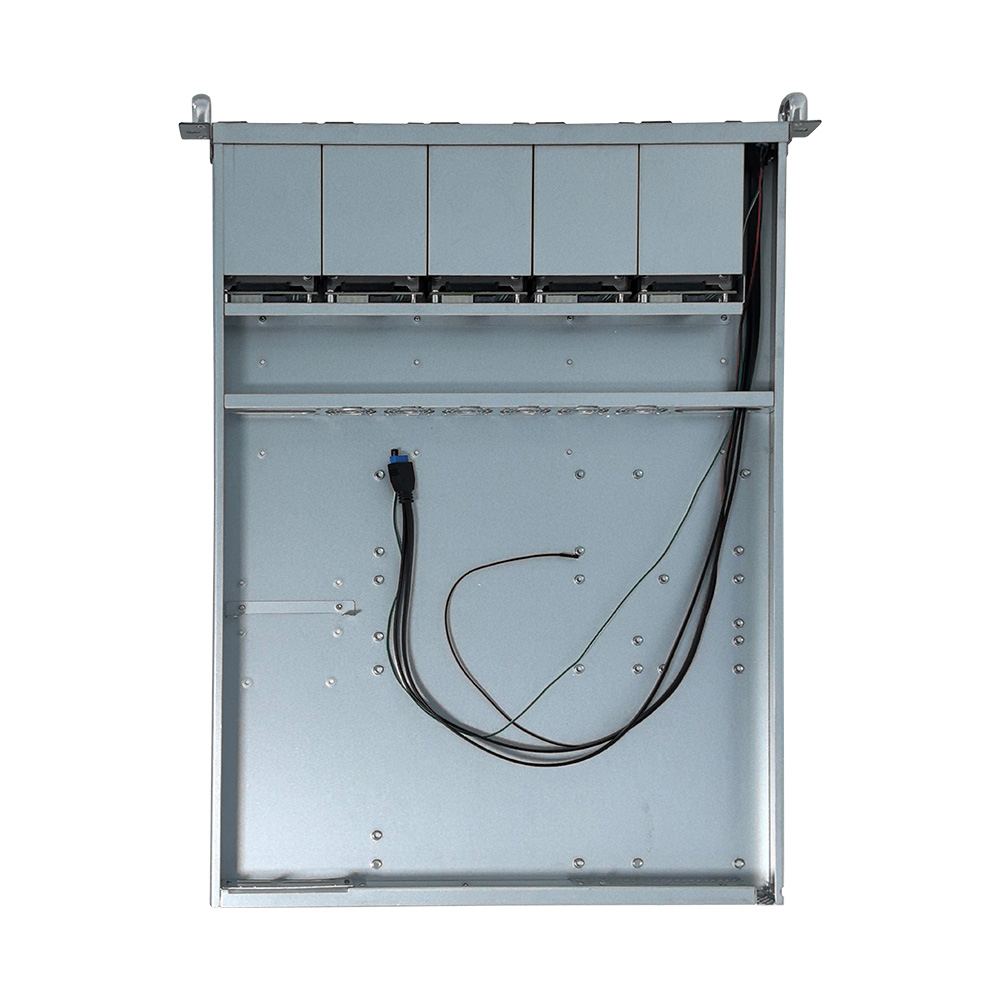

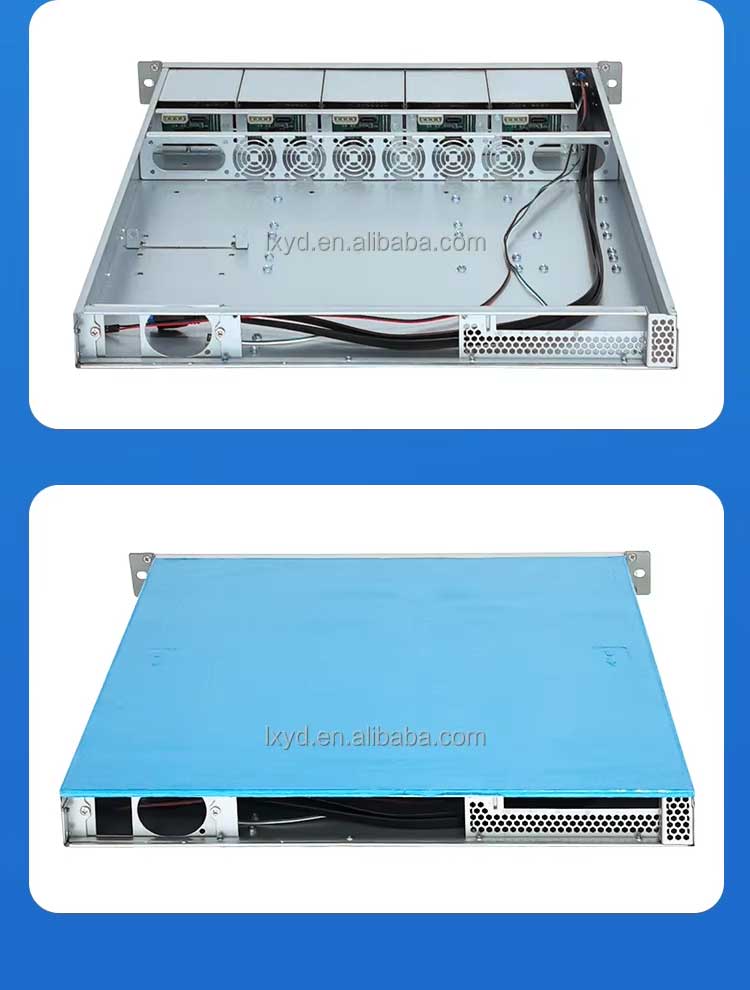

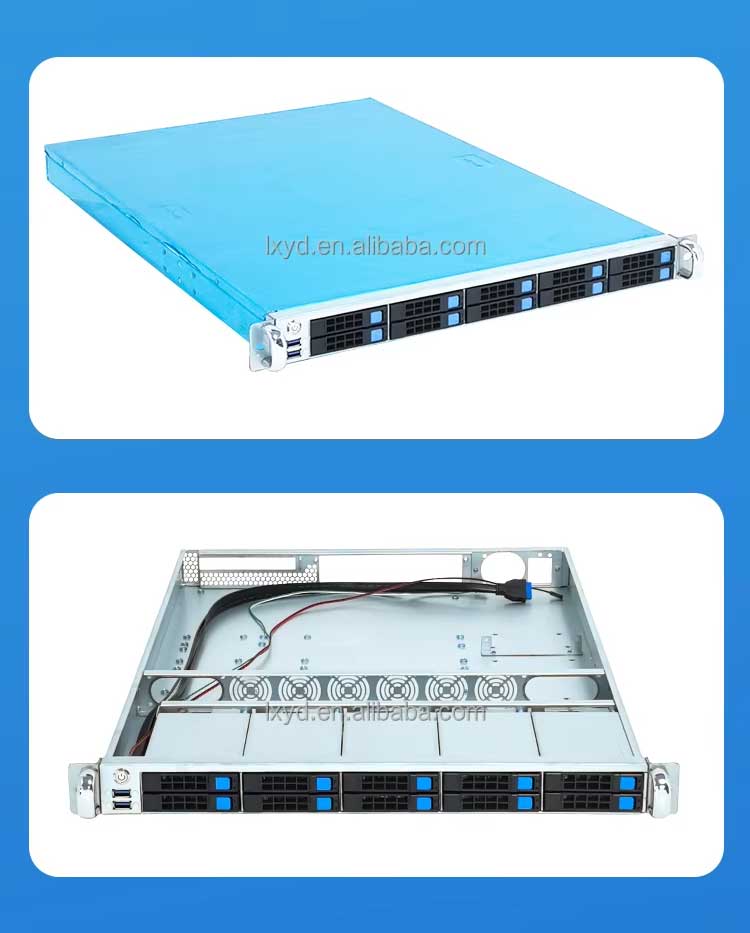

This 19″ server chassis of Rack-Mounted 1U industrial control chassis is built with quality fine 1.0mm SGCC material, ensuring durability and heat dissipation. It supports 10 *2.5″hot-swappable SATA drive bays , 6pcs 4028 fans, and a EATX motherboard. The front panel includes 2 USB3.0 ports, power and reset buttons, and multiple indicators for convenient operation and monitoring.
| Weight | 5 kg |
|---|---|
| Dimensions | 70 × 53 × 13 cm |
| material | Quality Fine 1.0mm SGCC |

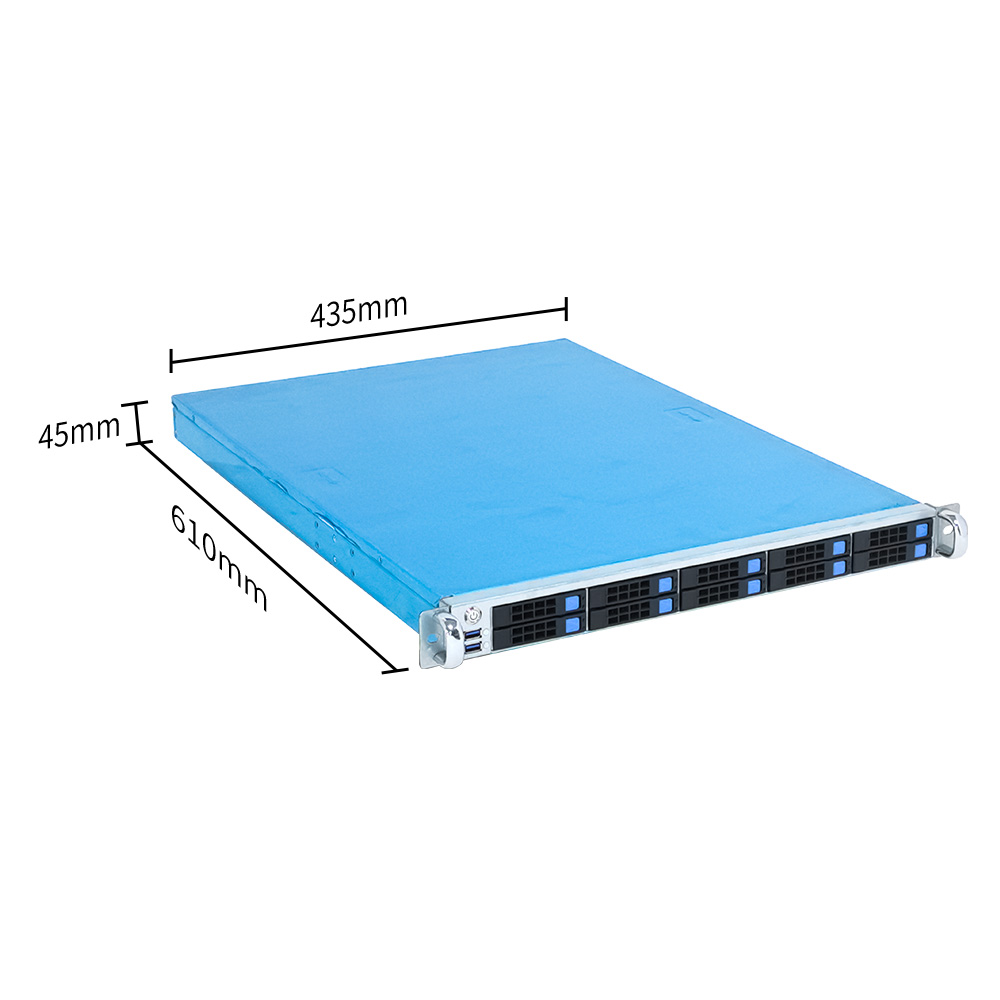

| Dimension D*W*H | D610mm*W435mm*H45mm |
| Front Panel Control | 2 USB3.0, 1 power button |
| Cooling Fan | 6pcs 4028 fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6")/Mini-ITX(6.7"*6.7") |
| Maximum height for cooler | 30mm |

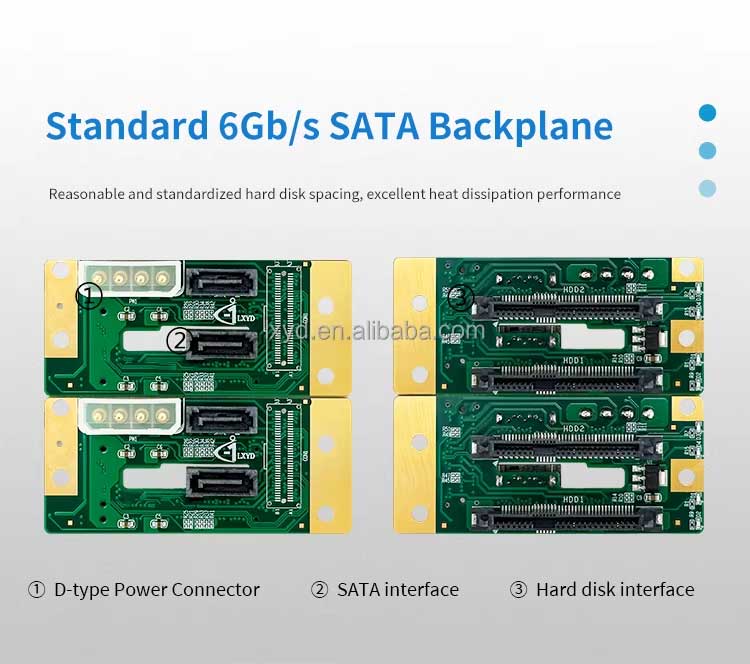

| HDD Backplane | 6Gb/s SATA Backplane,Supports SGPIO |
| HDD Bay | 10*2.5"hot-swappable SATA drive bays |
| Suitable PSU | Standard FLEX Power Supply |
| Suitable Rail | 2U-600-0040 rail |
| Epansion Space | 1 full-height PCIe expansion card slot |
| Packaging Details | Carton with PE foam |
| Single package size | D700mm*W530mm*H131mm |
| Single gross weight | 5kg |
