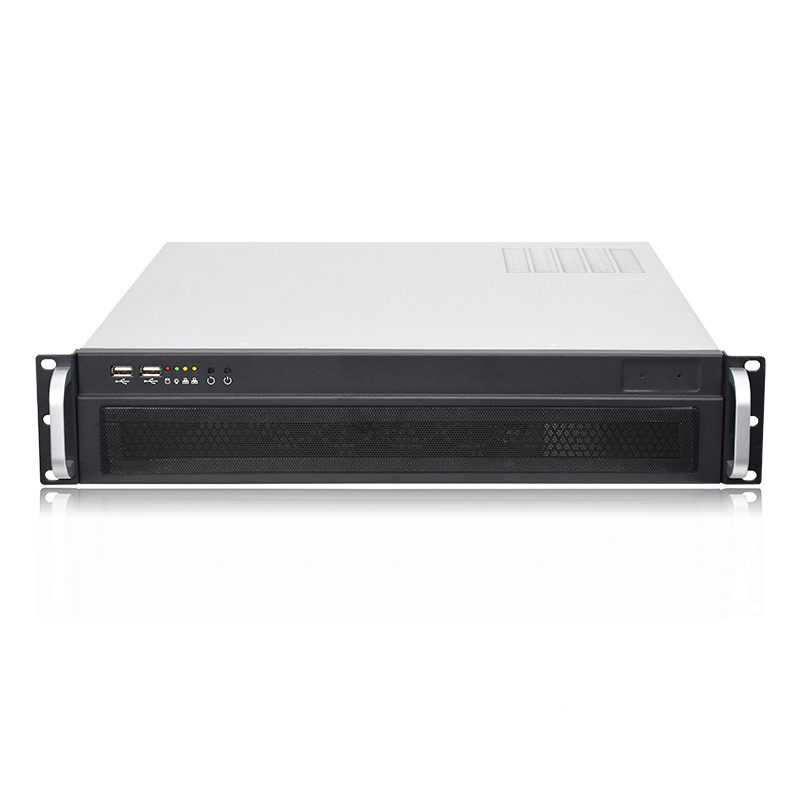

LX-S2380A
The LX-S2380A adopts a modular design, which can quickly meet customer demands. The fan, power supply and hard disk adopt a modular design, which enhances the system’s reliability and heat dissipation performance and makes maintenance more convenient.
Supports vertical insertion of 4 Half-height PCI/PCIE expansion slots. Optional standard size motherboards of 9.6 ” *9.6″ and below are available, which are flexible and convenient, and customization is supported.
It offers two hard disk bay options: 4 hot – swappable 3.5″ drive bays (Supports 2 2.5-inch U.2/SAS/SATA hard disk drives ) meeting the lightweight requirements for surveillance video recording and other applications.
Model
LX-S2380A
Weight
5.3KG
Material
SGCC
Heat dissipation
Air-cooled
Compatible motherboard
Micro ATX(9.6″9.6″)/Mini-ITX(6.7″6.7″)
Surface Treatment
Handles: oxidized silver
Panels and hanging lugs: spray-coated black
Cabinet and accessories: natural color of steel sheet
Volume
D380*W430*H89mm
Service
accommodation, exchange and return
Power Supply Position
Supports ATX power supply (140 × 80 × 86 mm)
Heat Dissipation System
Does not support intelligent temperature control;
comes standard with 2 8025 high-performance fans
