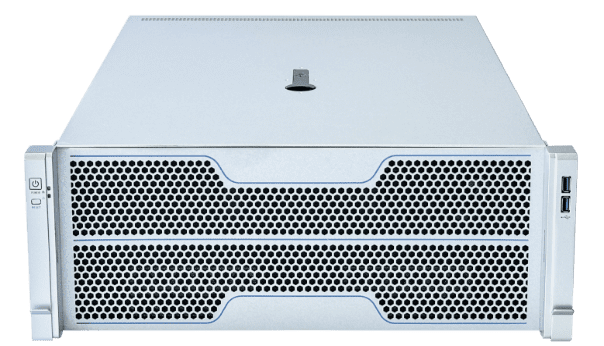

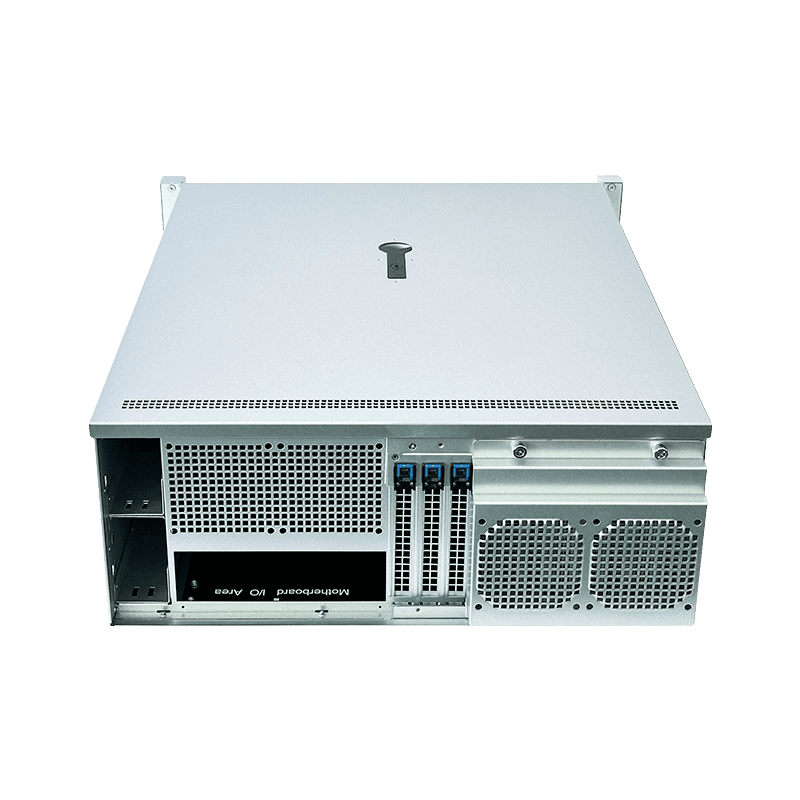

X-4U530
The X-4U530 adopts a modular design, which can quickly meet customer demands. The fan, power supply and hard disk adopt a modular design, which enhances the system’s reliability and heat dissipation performance and makes maintenance more convenient.
Supports vertical insertion of 11 full-height PCI/PCIE expansion slots. Optional standard size motherboards of 15 ” *13 ” and below are available, which are flexible and convenient, and customization is supported.
It offers two hard disk bay options: 4 hot – swappable 2.5″ drive bays (compatible with 4*2.5″/2*3.5″ U.2/SAS/SATA hard drives) meeting the lightweight requirements for surveillance video recording and other applications.
Model
X-4U530
Weight
12KG
Material
SGCC
Heat dissipation
Air-cooled
Compatible motherboard
EEB(15″13″)/EATX(12″13″)/CEB(12″10.5″)/ATX(12″9.6″)/Micro ATX(9.6″9.6″)/Mini-ITX(6.7″6.7″)
Surface Treatment
The front panel and mounting lugs are sprayed black; the chassis and accessories retain the natural color of galvanized sheet.
Volume
D530*W435*H177mm
Service
accommodation, exchange and return
Power supply position
1+1 Redundant Power Supply
HDD Backplane
12Gb/s SAS data backplane, supporting SGPIO
